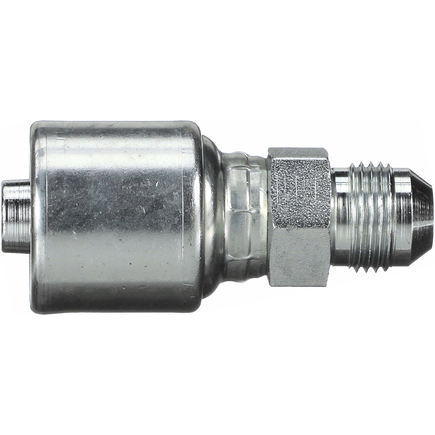

Gates G25165-1008 - Cl11 Gates

Best price across 1 stores

Male JIC 37 Flare (MegaCrimp). Robust "bite-the-wire" crimp. Robust bite-the-wire crimp. Tested to an industry-leading 1 million impulse cycles. Simplifies inventory management. Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard. Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard. Coupling Description: MegaCrimp Male JIC 37 Flare, Industrial Description: 10G-8MJ, Thread Size: 3/4-16, Inside Diameter: .625 IN, Hydraulic Hose Recommendation: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose, Stem Hex Size: 27 MM, Cut-Off Length: 1.46 IN, Length: 2.93 IN, Seal Type: Mated Angle, Nose Seat Type: Standard, Mating Angle: 37, Gender: Male, Bent Tube Angle: Straight, Swivel: No, Inside Diameter: 15.9 MM, Cut-Off Length: 37 MM, Length: 74.5 MM. Harmonized Tariff Code (Schedule B): 8412909015, Country of Origin (Primary): MX, Stock Status: S, UPC: 00072053304619, VMRS Code: 059032012, UNSPSC: 31163000.
