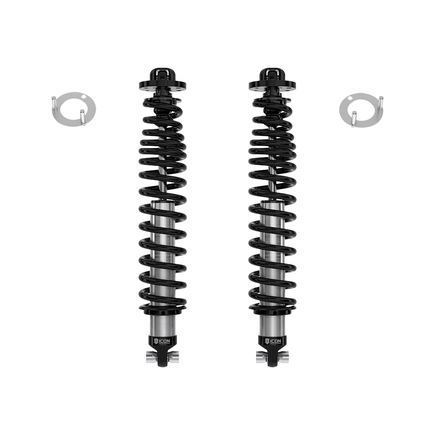

Icon 48613 - 21 23 Bronco Rear 2.5 Vs Ir Coilove

Best price across 1 stores

21-23 BRONCO REAR 2.5 VS IR COILOVE. 21-23 BRONCO REAR 2.5 VS IR COILOVER KIT HEAVY RATE SPRING. Increased wheel travel (up to 14) and ride quality over stock. Vehicle specific tuned for superior shock damping and control. Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25 of rear lift on Sasquatch Broncos. Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos. 6061 Aircraft grade aluminum CNC machined components. Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft. FK rod end bearings for extended longevity and minimal deflection. Fully rebuildable and re-tunable. 100% Bolt-on - no drilling, cutting or welding necessary for installation. OEM Wheels & Tires Fitment: Yes. Aap_uda_12: EA, Aap_uda_22: 1, Aap_uda_4: 55, Active or Passive Suspension: Passive, Add-on Part: 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL, Adjustable Compression: No, Adjustable Height: Yes, Adjustable Rebound: No, Adjustable Ride Height: Yes, Assembled: Yes, Body Diameter: 2.5 in, California Prop 65 Warning: Yes, California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm., Coil Over Springs Included: Yes, Compressed Length: 19.24 IN, Cylinder Color: Silver, Cylinder Finish: Cadmium Plated, Cylinder Material: Steel, Damping Type: Oil, Dust Shield Included: No, Extended Length: 29.31 IN, Gas Charged: Yes, Grade Type: Performance, Includes Bump Stop: Yes, Internal Construction Type: Single Tube, Lower Mount Type: Eyelet, Material: Aluminum, Maximum Lift: 3.5 IN, Maximum Ride Height Raising Distance: 3 IN, Minimum Lift: 1.25, OEM Wheels & Tires Fitment: Yes, 10108: 300 PPI, Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers), Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset, Remote Reservoir: NO, Reservoir Style: Internal, Self-Leveling: No, Service Parts: 252010 - 2.5 IFP REBUILD KIT, Shaft Diameter: 0.875 IN, Shock Absorber Body End Measuring Point: Center of Eylet, Shock Absorber Rod End Measuring Point: Top of Mounting Plate, Spring Color: Black, Spring Material: Steel, Spring Rate Type: Progressive Dual Rate, Title: ICON 2021-2023 Ford Bronco, Rear, 1.25-3 Lift, V.S. 2.5 Series Coilover Kit, Internal Reservoir, Heavy Rate Spring, Travel Length: 10.07 IN, Upper Mount Type: Mounting Plate, Valving Type: Digressive. Warranty Special: 1 Year-Shocks; Limited Lifetime-Coil Springs, Warranty Special UOM: TX, Country of Origin (Primary): US, Harmonized Tariff Code (Schedule B): 8708807000, NAFTA Preference Criterion Code: C, UPC: 00840103424194.
